Cinelli New Veltrix Disc 2023

Please ask for availability before ordering.

Thanks.

For descriptions of the bike components, consult the Cinelli official website.

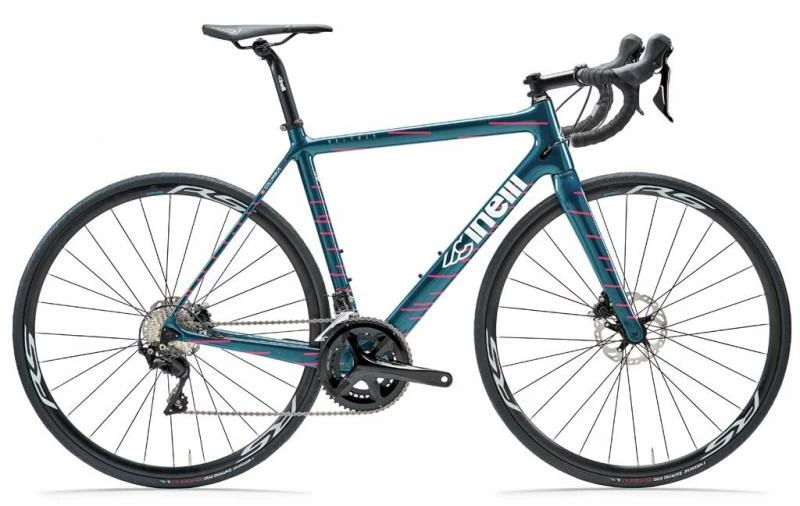

Veltrix is a carbon monocoque frame born for the competition: fast, reactive and performing. Its easy handling makes it suitable for multiple uses, perfect for the pro but also for those who want to ride at a smooth pace. The wise use of carbon fiber along with an optimal sizing of the sections of the frame elements make it a particularly performing vehicle.

Attacco / stem

CINELLI 6061 Stem

Size 90 (XS) 100 (S/M) 110 (L/XL) Curva / handlebar

CINELLI 6061 Handlebar / Ø 31,8 / Drop 131mm – Reach 55mm

Size 40 (XS/S) 42 (M/L/XL)

Guarnitura / crankset

SHIMANO RS / 11 Speed / 52-36T

Size 170 (XS) 172.5 (S/M/L) 175 (XL) Reggisella / seatpost

CINELLI 6061 Seat Post/ Ø31,6 / L350

Nastro / tape

CINELLI Cork Movimento Centrale / bottom bracket

SHIMANO / BSA 68mm

Deragliatore / ft. derailleur

SHIMANO 105 / 11 Speed / Brazed on Freni / brakes

SHIMANO 105 Hydraulic / Front 160mm Rear 140mm Disc Rotor

Pacco Pignoni / cassette

SHIMANO 105 / 11-32T Cambio / rear derailleur

SHIMANO 105 / 11 Speed

Comandi / shifters

SHIMANO 105 Ruote / wheels

SHIMANO RS-170 / Center lock

Gomme / tyres

Vittoria Zaffiro fold / 700x25c Serie sterzo / head set

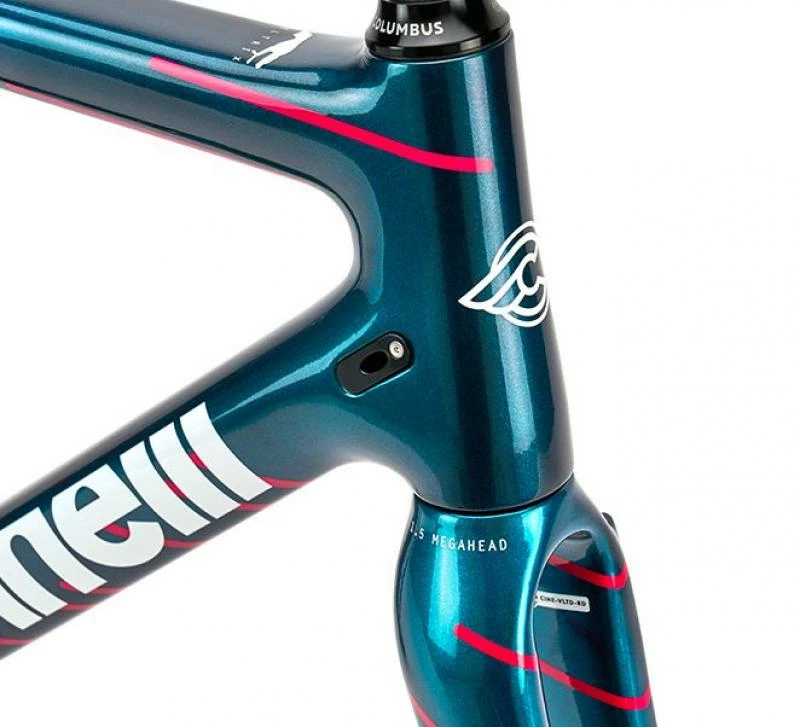

Integrated COLUMBUS Compass 1-1/8″ 1-1/2″

Catena / chain

KMC (X11) Sella / saddle

CINELLI SSM Squadra

Taglie (c-f) / Sizes

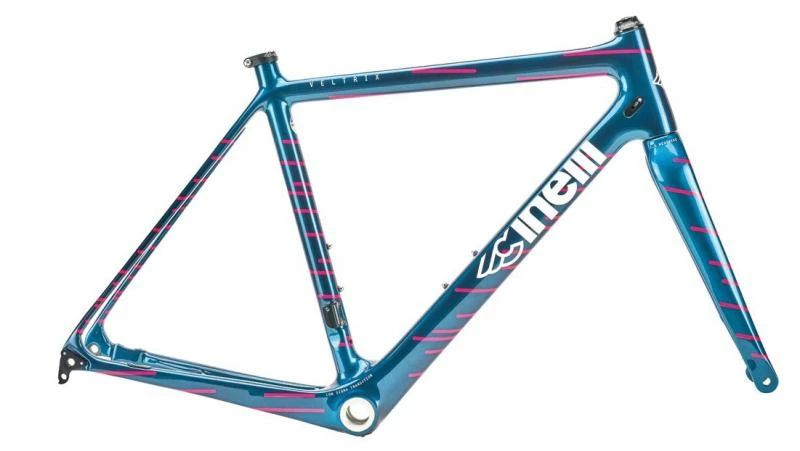

XS (50) – S (52) – M (54) – L (56) – XL (58) Telaio / frame

Columbus Carbon Monocoque

Serie sterzo / headset

IS 42/28,6 | IS 52/40 Reggisella / Seat Post

Ø31,6mm

Stringisella / Seat Clamp

Ø34,9mm Scatola movimento / BB standard

BSA 68mm

Deragliatore Anteriore / Ft. derailleur

Braze-on Passaggio cavi / Cable routing

Internal Routing – Di2/EPS Compatible

Colore / Color

Baby Blue Passaggio ruota / Tire clearance

up to 700x28c

Forcella / Fork

Columbus Disc 1-1/8” – 1-1/2” Monocoque Peso / Weight

Frame 1250g / Fork 500g (uncut)

Standard freni / Brakes standard

F&R Flat mount disc brake, rotor size up to 160mm Interasse mozzi/Hub spacing

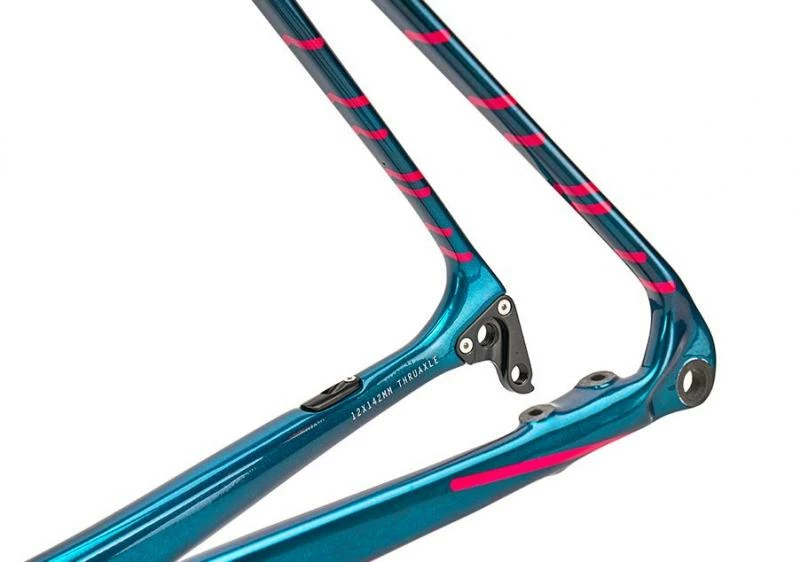

Rear TA Ø12x142mm / M12x1,5 L165mm skewer

Front TA Ø12x100mm / M12x1,5 L119mm skewer

Caratteristiche / Features

Low sigma transitions / Dynamic Race
