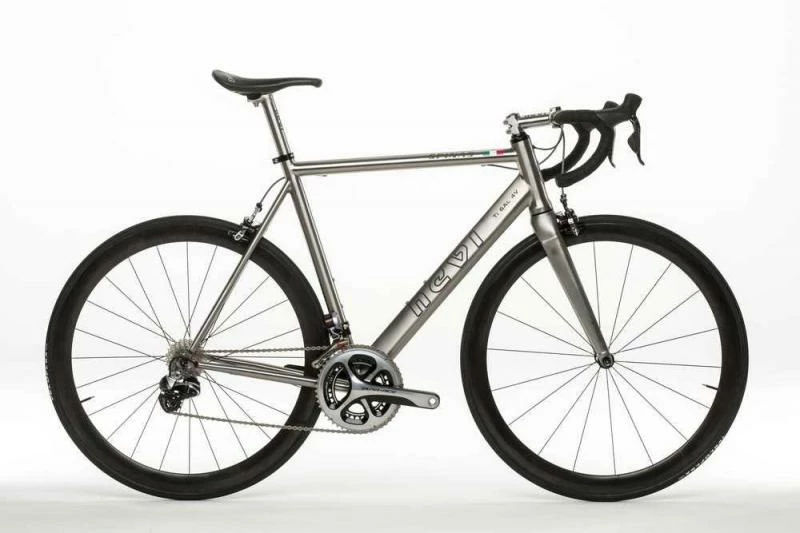

Nevi Spinas

Spinas

Delivery time: 6-8 weeks

SPECIFICATIONS:

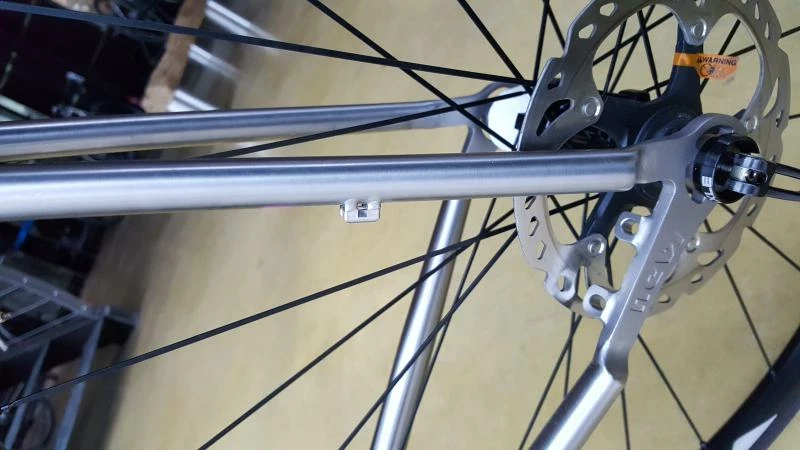

Tubes: 3AL-2,5V titanium (Grade 9) downtube 6AL-4V titanium (Grade 5) with 0,5 mm. of thickness, bottom bracket shell BSA threading grade 5 (6AL-4V) and dropouts CNC machined grade 5 (6AL-4V) Seamless tubes cold released

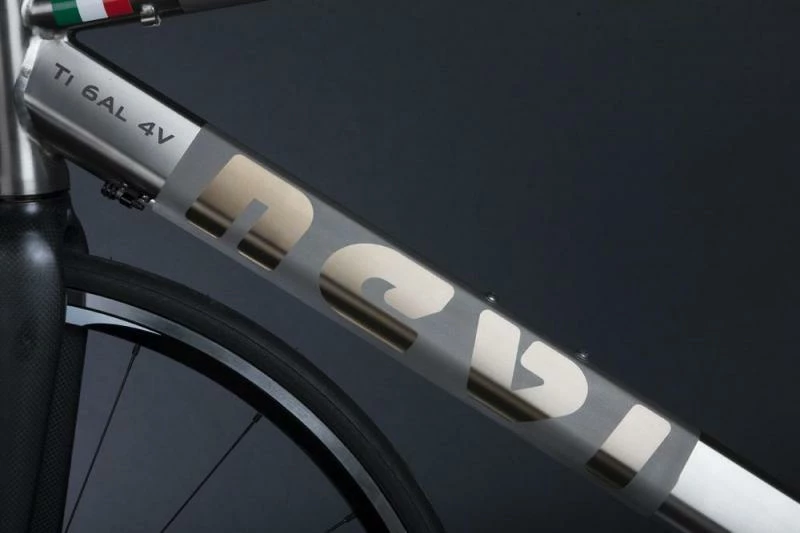

Top tube Ø35 oval section in the middle to avoid lateral flexion

BSA bottom bracket (1,37×24)

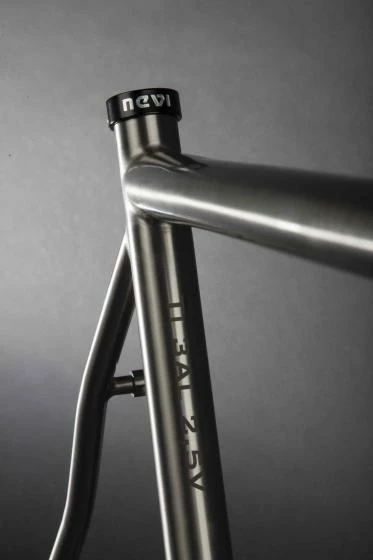

Tapered 1″1/2 headtube grade 5 (6AL-4V) Seatstays S bended

Built also for Shimano Dura Ace Di2 and Campagnolo EPS

Mechanical groupset with external cable routing

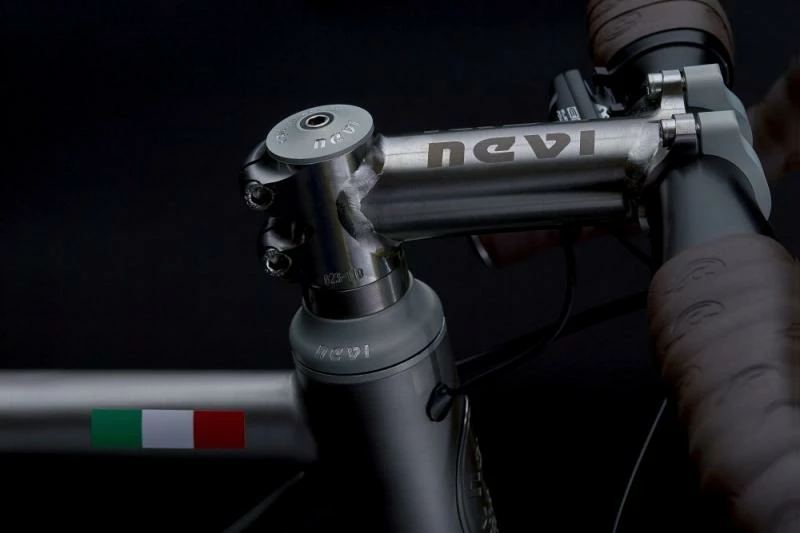

Stems

Built to make elegant your NEVI bicycle and to give the right performances to your worst way. No flexion and no waste of power.

Specifications

Aluminium front stem cap

material: titanium grade 5 ( 6AL-4V ) CNC worked

bar clamp diameter 31,8 mm.

Fork clamp diameter 28,6 mm.

Stem angle 83°

weight: 145 gramms ( 100 mm. )

sizes: 90 – 100 – 110 – 120 – 130
